Manual Busbar Processing Machine

CRIEFCO very solid machine is designed to gives years of reliable work. It has 3 spacers which are used in various combinations to position the copper centrally to the bending block.

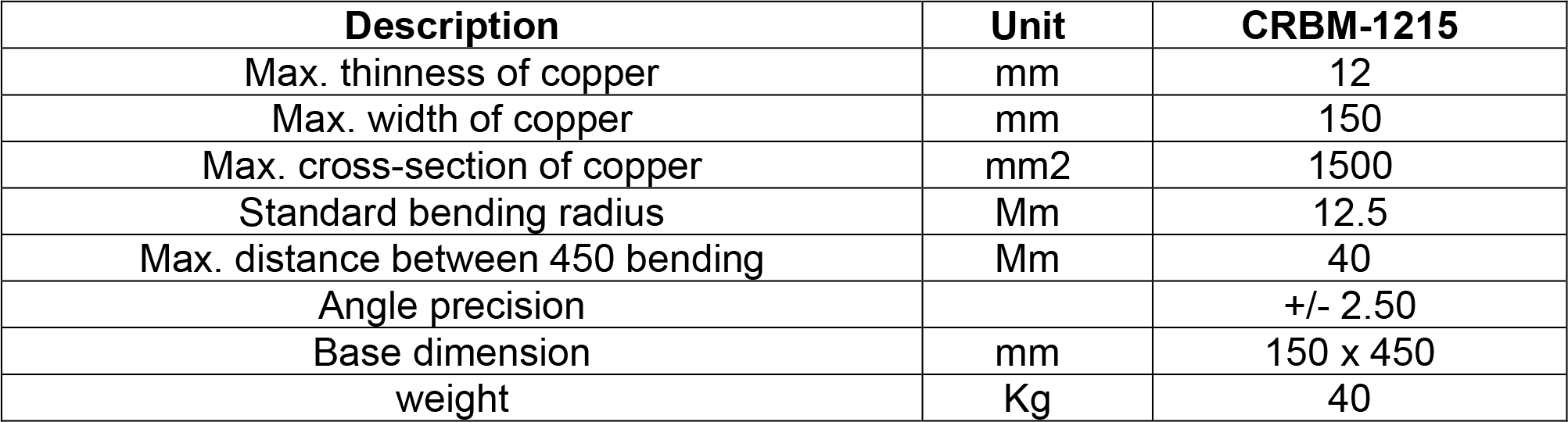

Product Specification

HYDRAULIC FLAXIBAR BUSBAR BENDING MACHINE

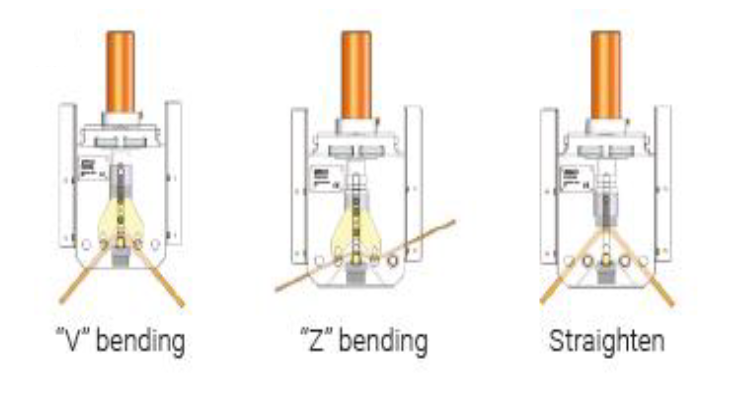

very flexible machine is designed to gives years of reliable work. It has solid bar which are used in various combinations to position the copper centrally to the “v” bending, “Z” bending and straightening.

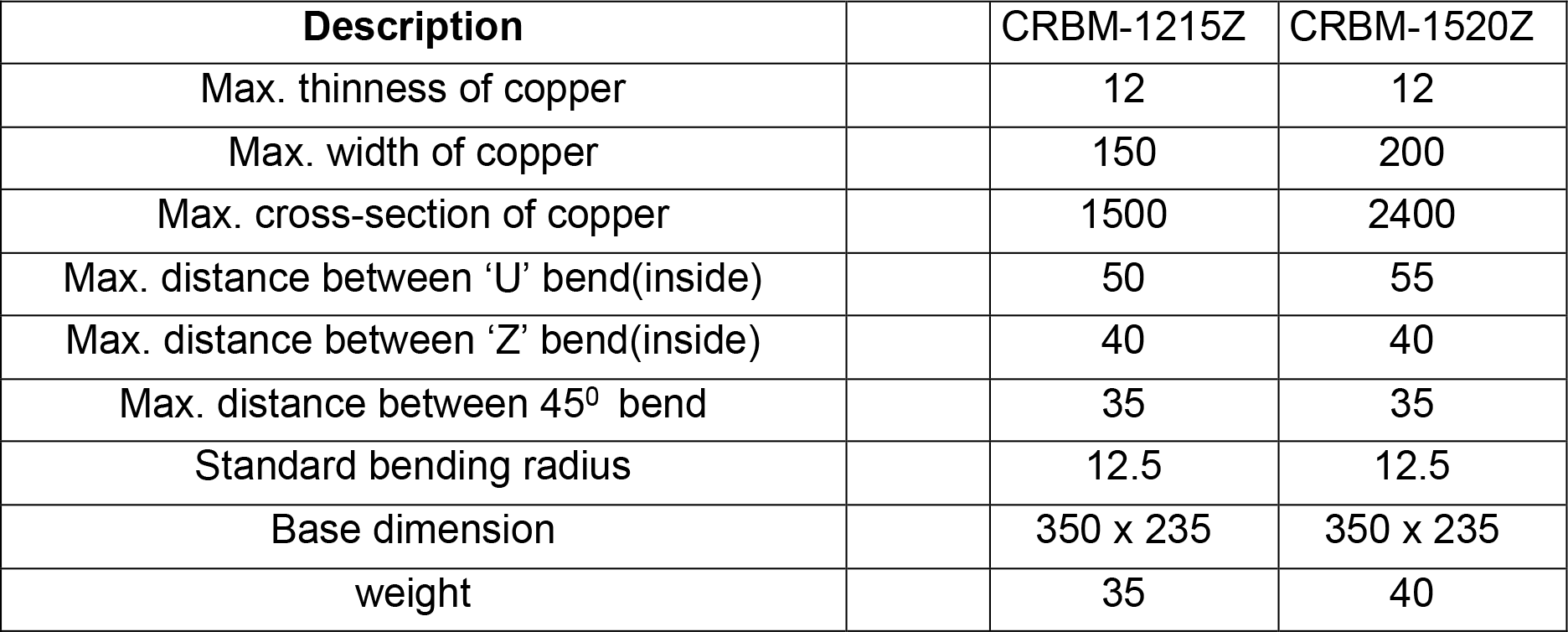

Product Range Specification

MANUAL BUSBAR CUTTING MACHINE

powerful cutting machine for copper and aluminum bus bar gives a clean cut within minimum burr after cutting the bar remains flat and ready for connecting to another bar with minimum contact resistance

A self-centering mechanism ensure that the copper is presented centrally to the cutting blade polycarbonate guard on the both side of the machine prevent finger contact with the cutting edge.

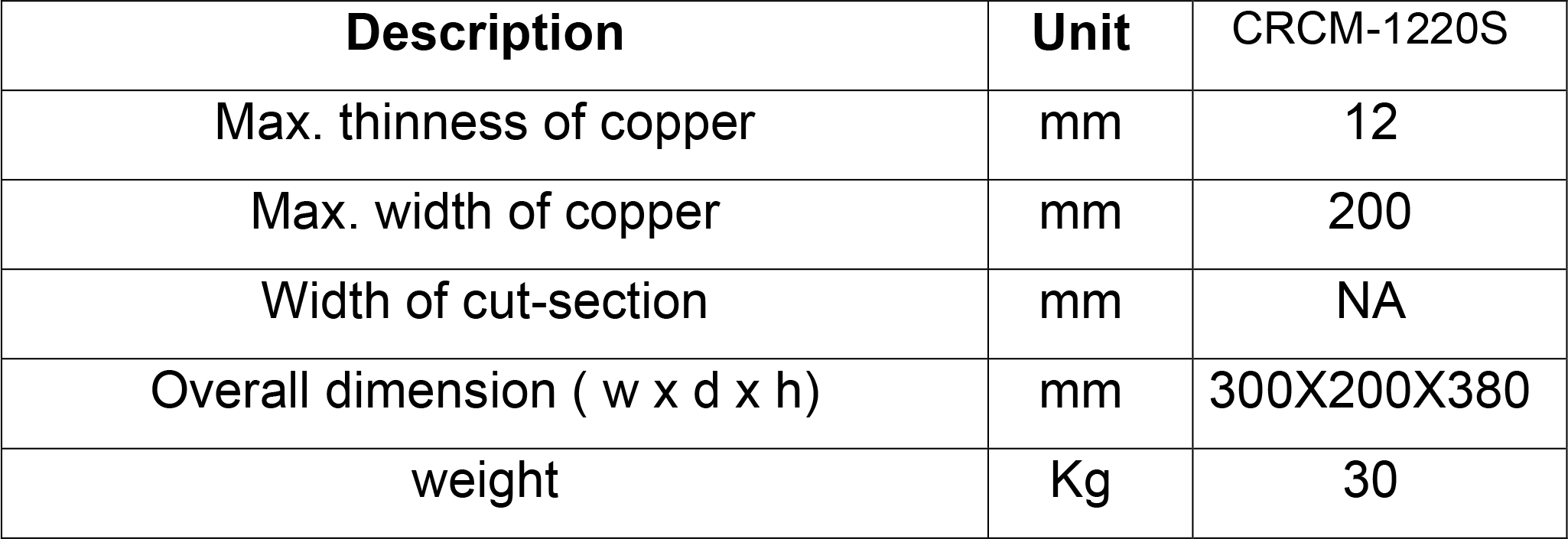

Product Specification

MANUAL BUSBAR PUNCHING MACHINE

heavy duty machine for punching round and elongated hole in copper or aluminum. The calibrated end stop can be rotated out of the way when long bars are begin punched. The two calibrated back stopes are coupled together and ensure that the bar is positioned square to the machine.

There are two dies for each punch size to the cover copper thickness 0-6 mm and 6-12 mm.

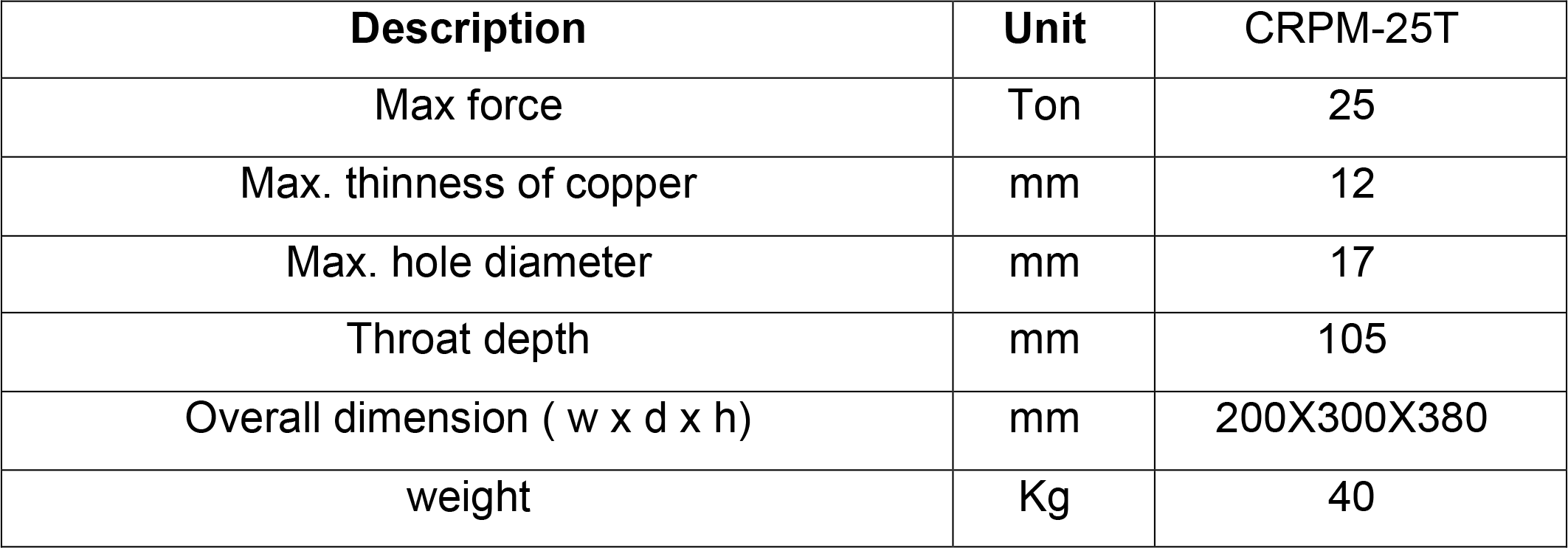

Product Specification
