4 Column Hydraulic Press Machine

Four-post hydraulic presses, also known as 4-column presses, can be designed to accommodate dies of any size and are well suited for part manufacturing that requires superior rigidity and precise bed-to-ram parallelism. 4-column presses are advantageous because they are typically more economical than gib-guided presses, and allow four-sided access to the working area.

CRONUS INDUSTRIES offer a wide variety of hydraulic post or 4 column presses ranging from 20 to 2000 ton in capacity. While we offer several “standard” sizes based on typical use, CRONUS INDUSTRIES routinely build customized models based on individual client application and production requirements. Our experienced engineering staff partners closely with clients to ensure their press is built to their specifications.

Four Column Hydraulic Presses/Double Action Deep Drawing Hydraulic Press Used in Processing Metal Products with a wide range of versatility, suitable for a variety of metal tensile, bending, flanging, cold extrusion, blanking process. Also applies to the correction, press-fit, powder products, abrasive products, grinding wheel, Bakelite, resin thermosetting products forming and press-formed in the insulating material of the plastic products.

PRODUCT ADVANTAGE

• Low energy consumption, high speed, low noise, high efficiency
• Slider divide speed into two segments to control: empty loading fast, slowly close mold, stretch
• Activity crossbeam has safety limiter in both up and down directions
• With the function of automatic and manual, it's convertible
• Two operation model, viz. pressure regulation and stroke regulation which can be selected through operational panel, and has the character of pressure-keeping and time-delaying.

PRODUCT APPLICATION

• Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper
• Household appliance: washing machine, TV, refrigerator, air conditioning, rice cooker and other parts
• Kitchenware: sink, tea set and other kinds of containers

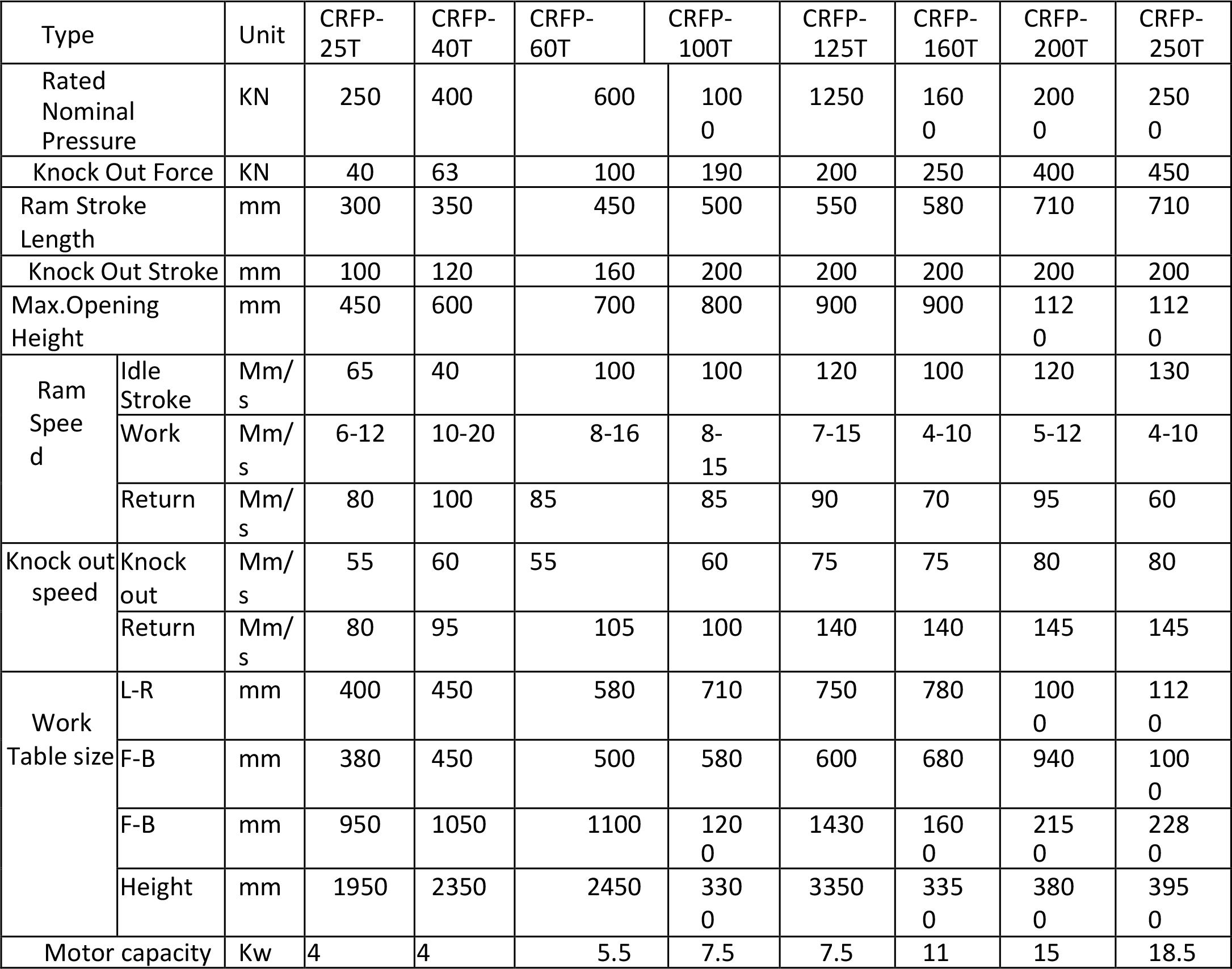

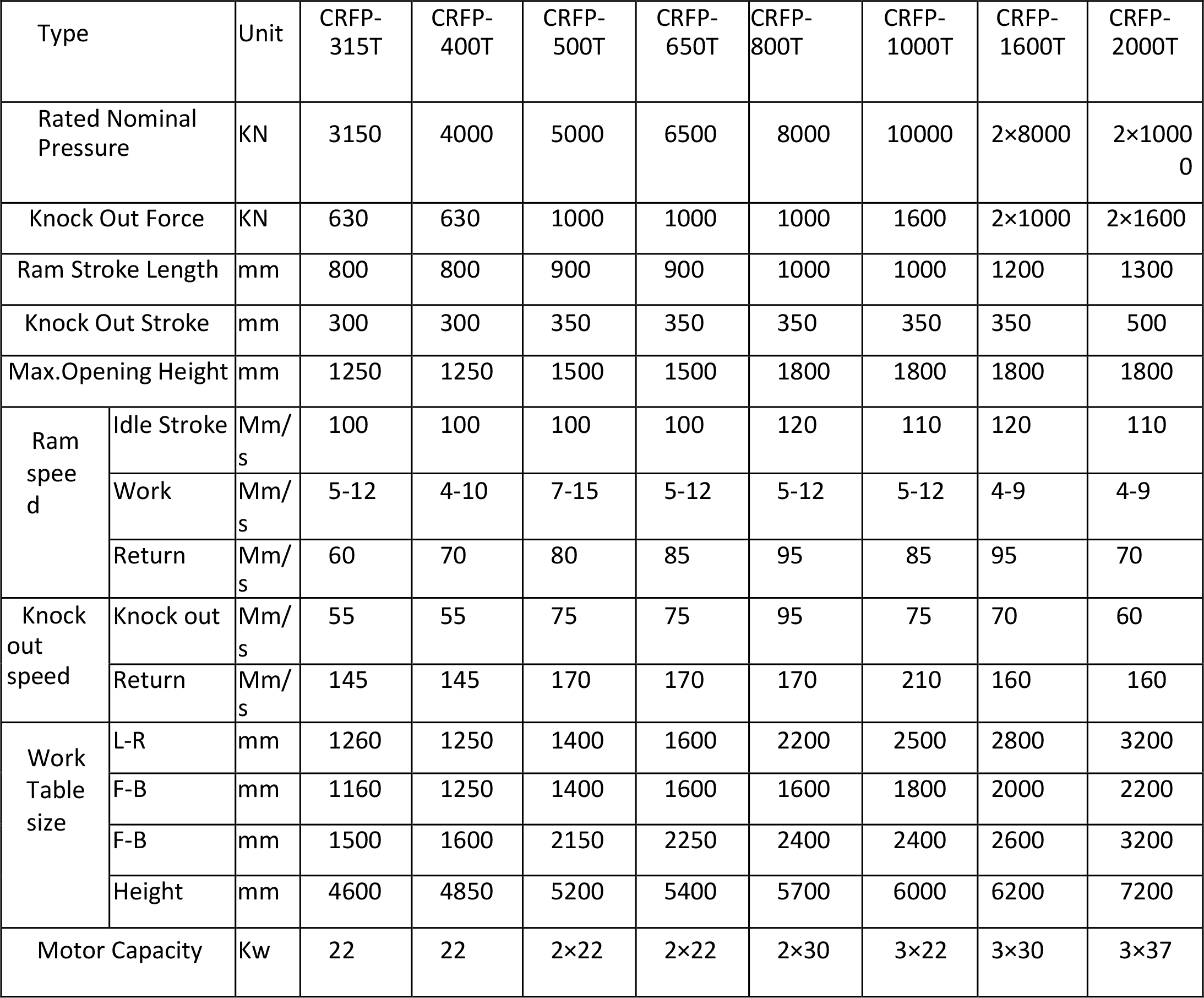

PRODUCT RANGE SPECIFICATION

OPTIONS

• Automatic tie bar lubrication
• Heater Platen for Molding.
• Plc Control
• 8-Point Grib Guide
• CNC HMI Control
