Hydraulic Horizontal Baler

Hydraulic horizontal baler from Criefco also known as manual-tie horizontal baler and semi-automatic horizontal baler, are used for pressing various material including both solid material and hollow plastic material. They are widely used in a variety of facilities, such as paper/cardboard recycling facilities, carton manufacturers, printing facilities, textile waste recycling installations, distribution centers, PET bottle recycling plants, fiber processing facilities and packaging factories.

This machine is a good choice for facilities that handle no more than 3.5tons volume of waste per hour. Except for manual tying, all other processes are automatic such as material feeding with a conveyor, compressing, bale outlet door opening and closing, and bale ejecting.

PRODUCT FEATURES

• Electric Controlled : for easy operation, simply by operating on buttons and switches to fulfill platen moving and bale ejecting.
• Hydraulic-driven Exit Door : can automatically lifting up to let the bales come out, which promotes operation efficiency and maximize output.
• Automatic Feeding Conveyor is Optional : for achieving continuous & automatic material feeding to maximize throughput and save labor. The conveyor can automatically start or stop according to material level in hopper.
• Horizontal Cutter on Feeding Aperture : for cutting off the excessive material to prevent it from getting stuck at the feeding aperture
• Automatic Bale Ejecting System : for efficient bale ejecting by simply pressing a button
• Close-end Design : ensures very dense bales especially for baling hollow products.
• Bale Exit Island : for receiving bales ejected from the machine and allowing bales to be easily removed with forklift.
• PLC Control System. : automates the operation and promotes accuracy
• Cooling System is Optional : for cooling down the temperature of the hydraulic oil, which protects the machine in high ambient temperature. Either air-cooling or water-cooling is available

PRODUCT RANGE SPECIFICATION

PRODUCT APPLICATION:-

Cardboard, Paper, PET Bottles, PP/HDPE Containers, Textile Waste, Film, Packing Material, Fiber, Disposable Plastic Tableware, Etc.

Overall specifications are subject to change without notice. Criefco sales representative for your inquiry will give you the exact specifications for your quoted machine.

*Bale size hereby referred to does not consider bale expanding ** Output rates are subject to your material's input density, feed speed, and other variables of production beyond the control of Cronus Industries.

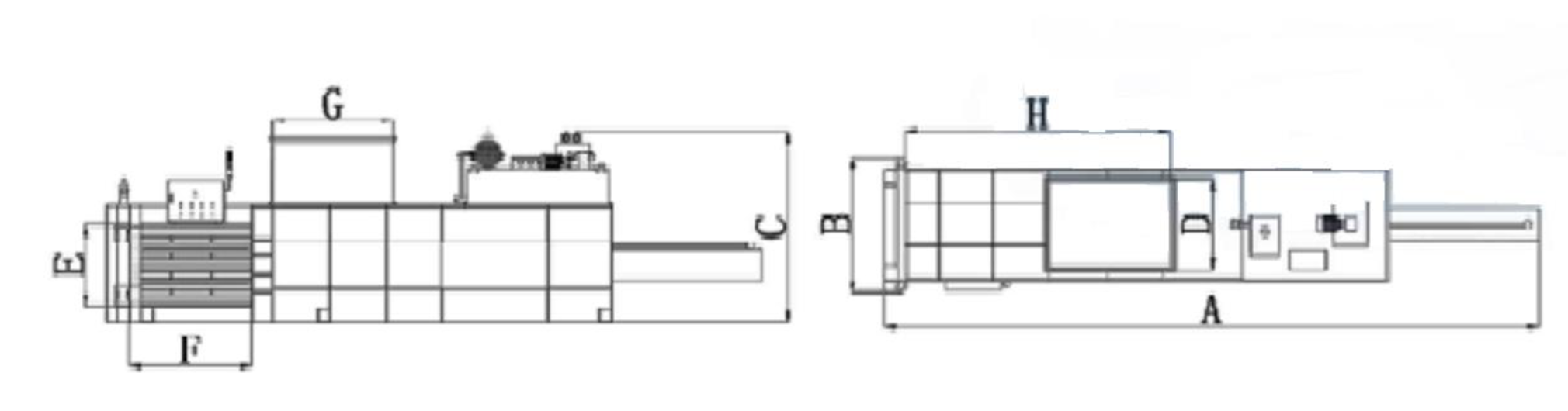

DIMENSION DETAIL
