Hydraulic Machines ‘C’ Type Hydraulic Press

We often referred to as a “C” frame hydraulic press, these hydraulic presses are available in standard model configurations from 10 to 200 tons SOLID GUIDE AND TIE BAR GUIDE. This hydraulic press is C-Type with all parts installed inside machine body. It's easy to operate, and the operator's safety is full assured. Such all-in-one and precise design in high rigidity facilitates the machine movability and installation.

Product Advantage

• Faster approaching and returning speeds by inner cylinder allow very high production efficiency.
• Very simple and convenient adjusting device makes ram or upper working table pressing at any position within its whole stroke and the length of approaching and pressing strokes can be very easily adjusted.
• Pressing capacity can adjusted according to applied pressing technology.
• Welded strong frame body made of high quality integral steel plate ensures high rigidity under high pressure and the most convenient operating space.

Product Application

• Stamping, forming, shallow drawing and pressing assembly etc.
• Forming of spectacle parts, lock parts, metal hardware pressing, connectors, electric components and rotor & stator of motor etc.

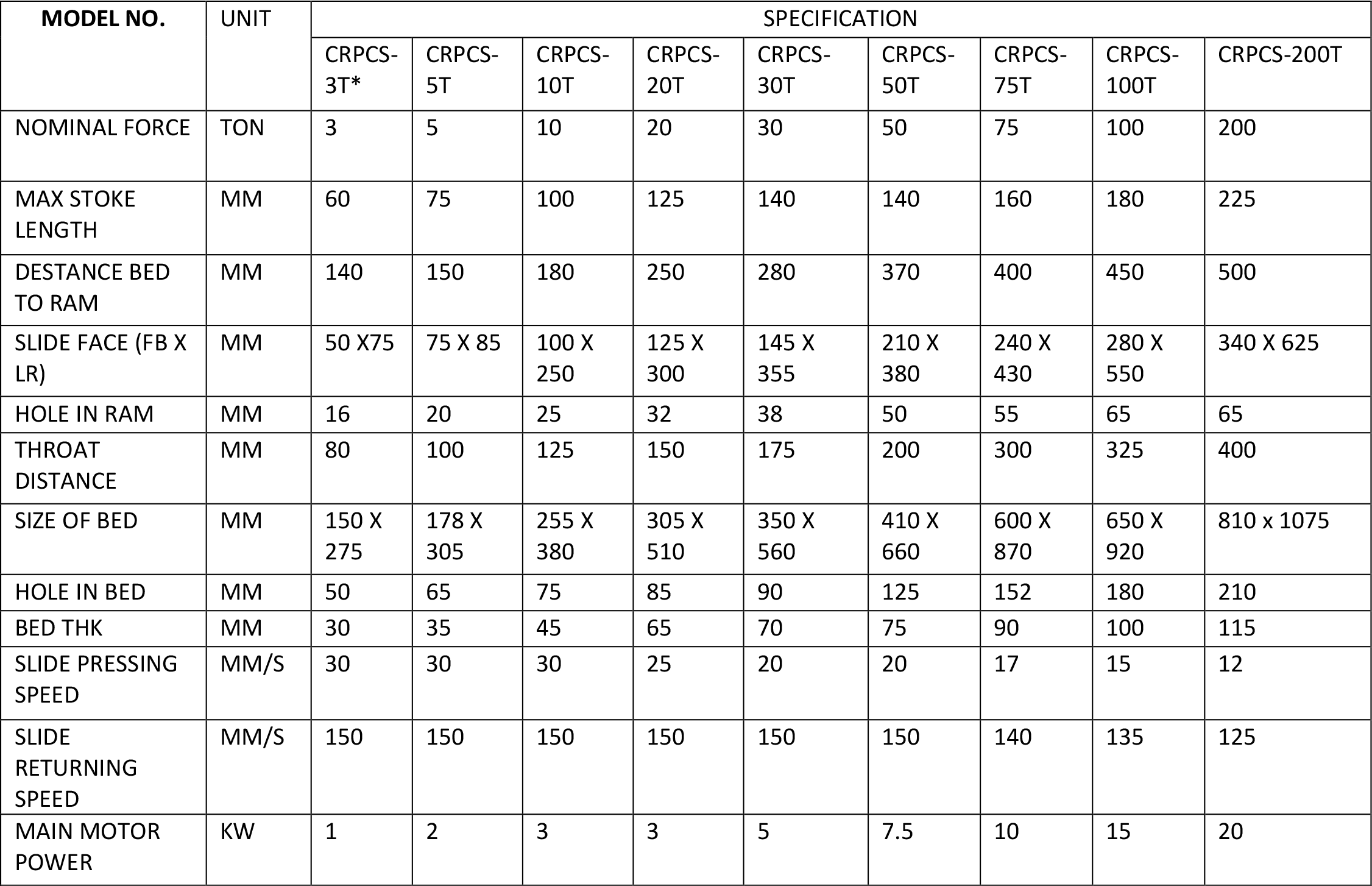

Product Range Specification SOLID GUIDE TYPE

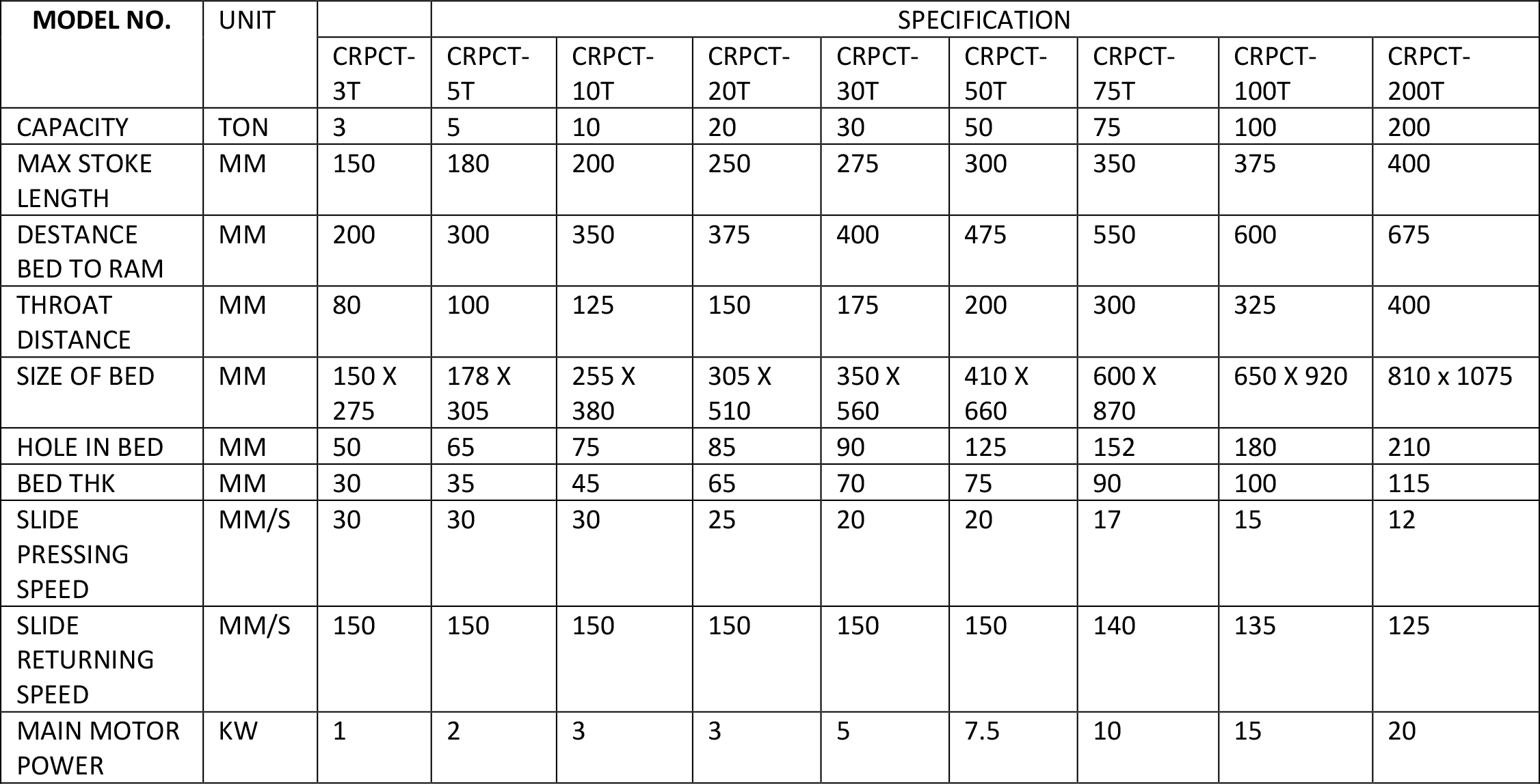

TIEBAR GUIDE TYPE
