H Frame Hydraulic Machine

CRIEFCO'S 'H' TYPE or Fabricated hydraulic presses are heavy duty and their frame is manufactured using ultrasonically tested quality plates of suitable thickness. These presses find extensive application in deep drawing compression molding.

These hydraulic presses are available in standard model configurations from 20 to 1000 tons. It's easy to operate, and the operator's safety is full assured. Such allin-one and precise design in high rigidity facilitates the machine movability and installation.

CRIEFCO offer 8-Point Gib Guided Hydraulic Press with lubricated bronze bearing for a durable rib surface. These presses have gib guided stability that provides speed with precision. Our range of hydraulic press have a longer service life.

PRODUCT ADVANTAGE

• Faster approaching and returning speeds by inner cylinder allow very high production efficiency.
• Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points, Hydraulic integrated system is adopted separate control unit.
• Pressing capacity can have adjusted according to applied pressing technology.
• Welded strong frame body made of high-quality integral steel plate ensures high rigidity under high pressure and the most convenient operating space.

Product Application

• Stamping, forming, shallow drawing and pressing assembly etc.
• Forming of spectacle parts, lock parts, metal hardware pressing, connectors, electric components and rotor & stator of motor etc.

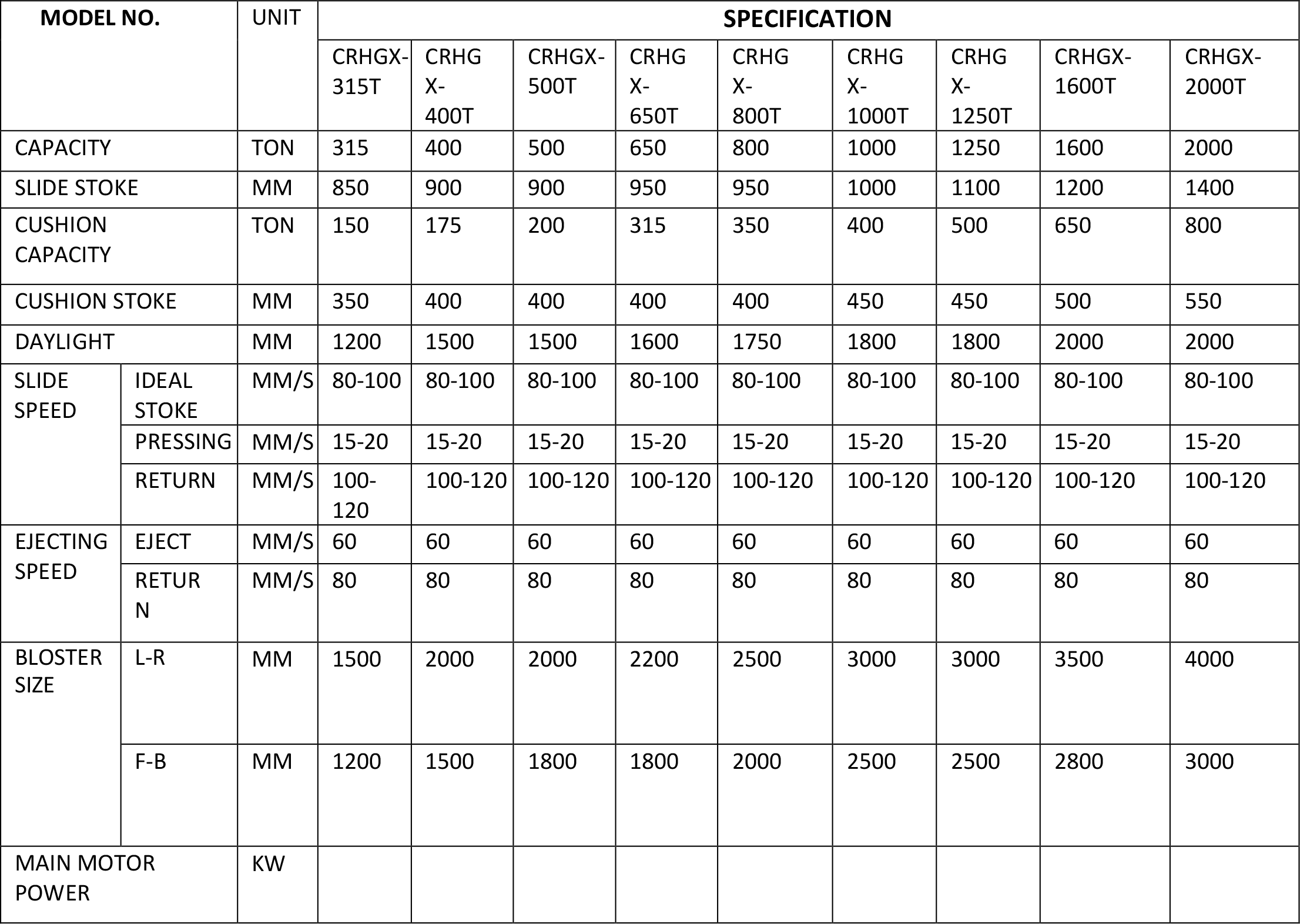

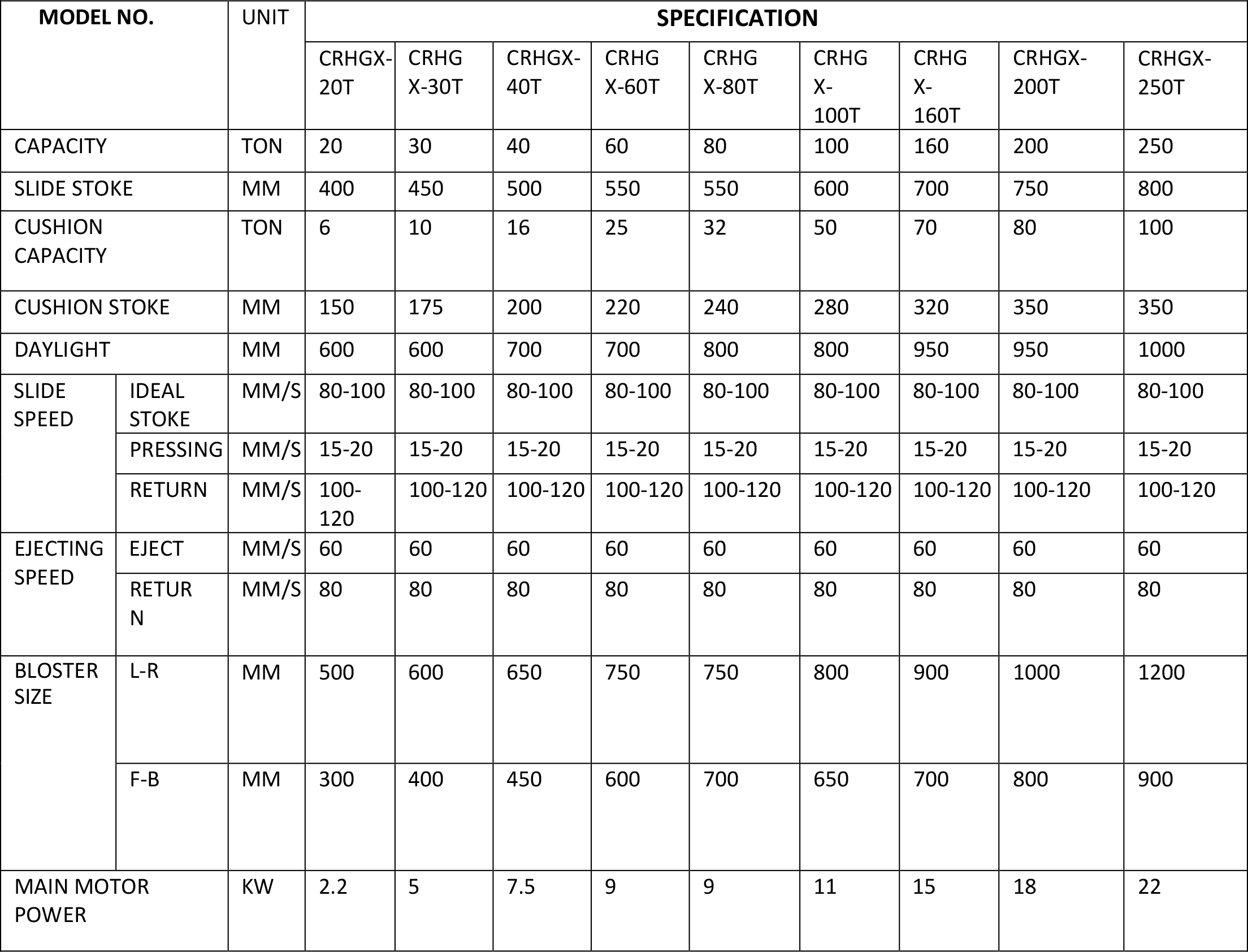

PRODUCT RANGE SPECIFICATION

OPTIONS

• Automatic guide lubrication.
• Heater Platen for Molding.
• PLC control.
• 8-point grib guide
• CNC HMI control
